Latest revision as of 11:29, 5 January 2026
This tabular .csv format check files contains the depth flow relationship for any "Q" type pit inlets used in the model.

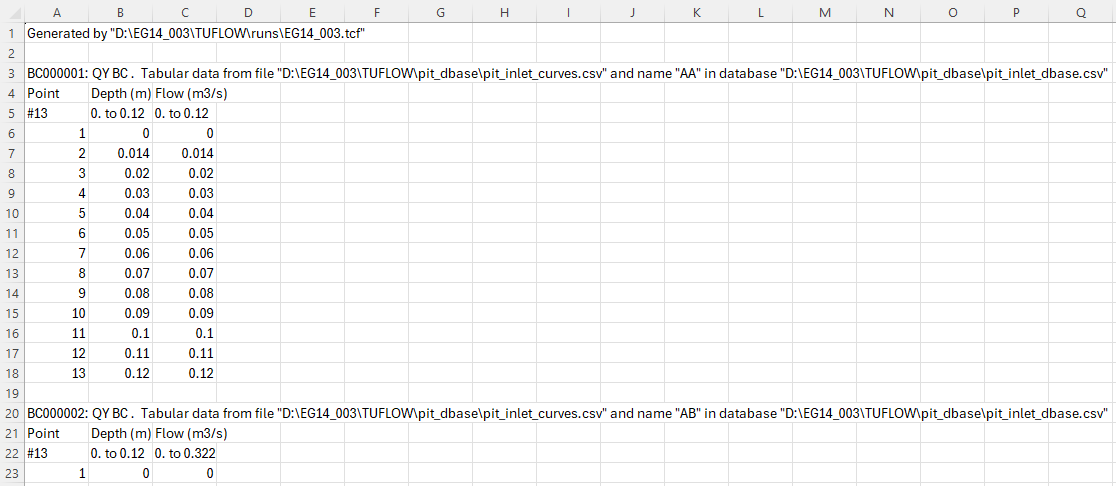

For each inlet curve a depth-flow table is produced as per the example image below:
