Line 10:
| m|| Column number in the TUFLOW domain.
|-
| Code|| The cell code status. This is 1 for active cells and -1 for null cells that are included in the mesh. Refer to the <u>[https://
|-
| ZC|| The minimum elevation within the cell.
Line 16:
| Domain_Index||The index of the model domain. This is the order with <tt><font color="blue">Start 2D Domain</font><font color="red"> == </font><Domain Name></tt> commands appears in the TCF control file. For a single domain model this will be 1.
|-
| IC_<num>|| The initial concentration for tracer <num>.
i.e. 'IC_1' would be the attribute name for tracer 1, 'IC_2' for tracer 2, etc.
|}
<br>

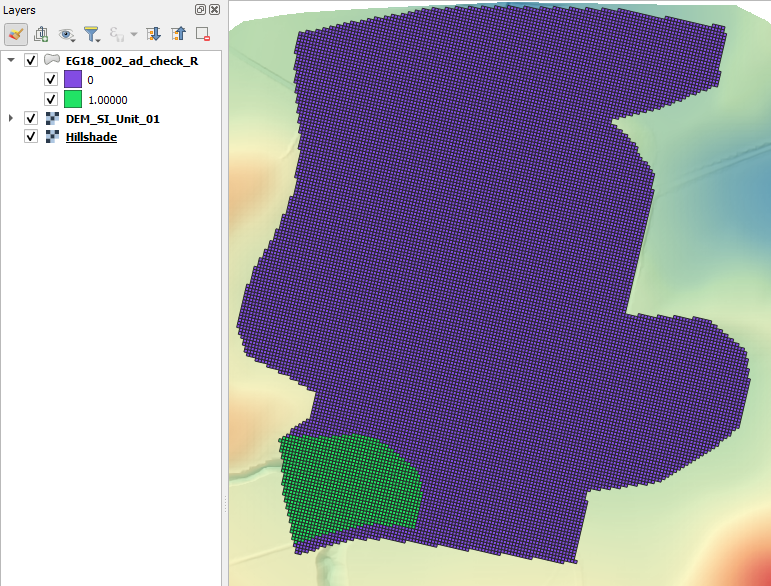

In the image below, a 2d_ad_check file is shown. Only 1 tracer (IC_1) was simulated and the different initial concentrations for IC_1 are styled with different colours.<br>
<br>
[[File:2d_ad_check_01a.png]]<br>
