Latest revision as of 15:28, 19 August 2024
The XSL check file contains information on the input cross-sections where specified as tabular data (as opposed to say a box culvert section which is defined by a height and a width). At each input cross-section a GIS line is output containing the information in the table below.
The .csv 1d_ta_tables check file contains the height varying properties for the section.
The 1d_hydroprop check files which contains information on each of the channels (including interpolated and structures).
Attributes of xsl_check

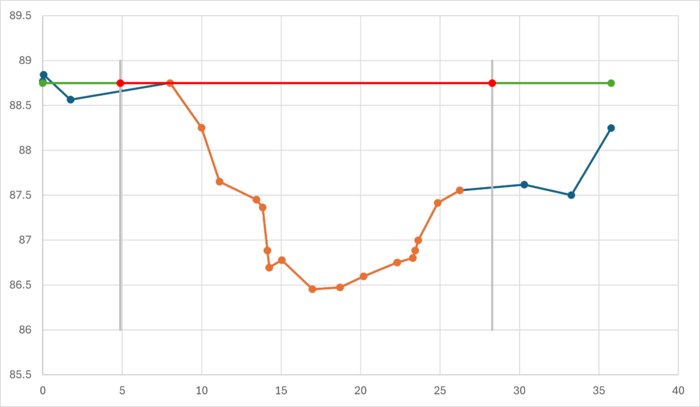

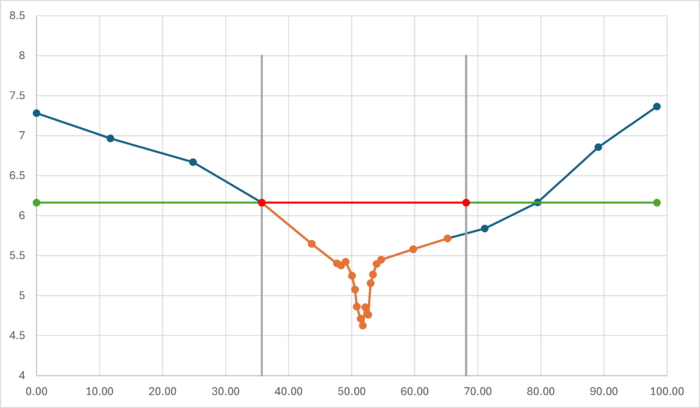

Attribute Name | Attribute Description |
---|---|
ID | The cross-section ID, this is the input cross-section number and is unique. It is also output in the 1d_ta_tables check file. |
Manning_n | The Manning's n at the lowest point (bed) in the cross-section. If no roughness value is specified on the cross-section (the Manning's value is specified on the channel), then a value of -1 is output. |
Elev_at_Bed | The elevation at the lowest point in the cross-section. |
Elev_at_Top | The elevation at the highest point in the cross-section. |
Depth | The depth at the top of section. i.e. the elevation at the top - the elevation at the bed. |
Top_Flow_Width | The flow width at the top of the cross section. |
Top_Storage_Width | The storage width at the top of the cross-section. |
Top_Flow_Area | The flow area at the top of the cross-section. |
Top_Wet_Perimeter | The wetted perimeter at the top of the cross-section. |
Source_File | The source file (.csv) file which the data was read from. |
Attributes | The remaining attributes (the source file is excluded, see the above) in the GIS layer. |
Source_Layer | The GIS file that the cross-section was specified in. |
