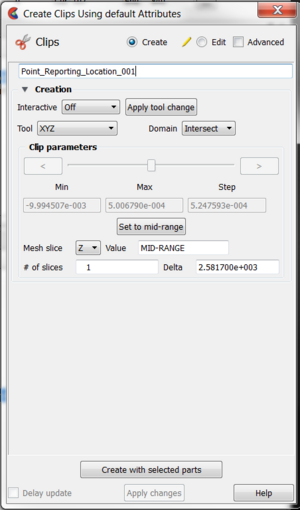

| + | * Name the Clip, for example ''Point_reporting_Location_001''. | ||
| + | * Select Tool = <b> XYZ </b> | ||
| + | * Select Mesh Slice = <b> Z </b> | ||
| + | * Select Value = <b> MID-RANGE </b> | ||
| + | [[File:Ensight_026.png|300px]] | ||
| + | * Deselect the clip line tool.<br> | ||
| + | [[File:Ensight_020.JPG]]<br> | ||
| + | *The clip should now remain within the view window and also show in the list of Parts <br> | ||
| + | [[File:Ensight_027.png|300px]] | ||
| + | <br> | ||
| + | |||
| + | Variables need to be associated with the clip: | ||
| + | * Select the clip part (left click the Part) | ||
| + | * Select query [[File:Ensight_023.JPG]]<br> | ||
| + | * Select Sample = <b> At XYZ over time</b> | ||
| + | * Select the desired variable. For example ''Depth'' or ''Water_Level'' <br> | ||
| + | [[File:Ensight_028.png|300px]] | ||
| + | *This dataset will be added to the Plots/Queries window, and also to the display window as a graph. Double click the graph in the display window to update the graph display options (colors, labels, titles etc.). | ||
| + | [[File:Ensight_024.JPG|450px]]<br> | ||
| + | * Alternatively, unique graphs an be created for each dataset can be created. ''Right Click the query dataset>> Add to Plot <br>'' | ||
| + | [[File:Ensight_025.JPG|450px]]<br> | ||
| + | |||
{{Tips Navigation | {{Tips Navigation | ||
|uplink=[[Ensight_Tips | Back to Ensight]]}} | |uplink=[[Ensight_Tips | Back to Ensight]]}} | ||
Revision as of 07:57, 18 February 2015
Create a clip line in the location where you would like to extract results.
- Select the clip line icon
- Relocate the clip line. Selecting the centre is used to shift the location of the clip line. Selecting the start or end of the line can be used to alter the line extent.
- Select the parent Part 2D TUFLOW Elements
- Right Click >> Create >> Clips
- Name the Clip, for example Point_reporting_Location_001.
- Select Tool = XYZ
- Select Mesh Slice = Z
- Select Value = MID-RANGE
- Deselect the clip line tool.

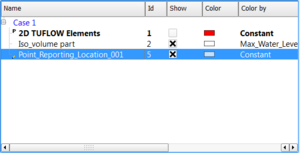

- The clip should now remain within the view window and also show in the list of Parts
Variables need to be associated with the clip:
- Select the clip part (left click the Part)
- Select query

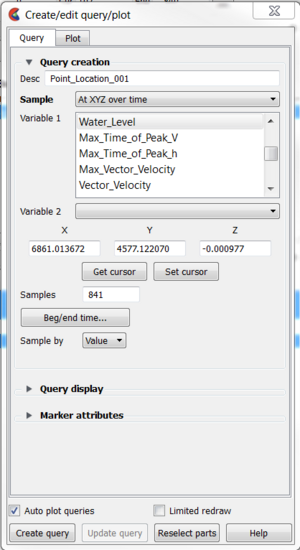

- Select Sample = At XYZ over time
- Select the desired variable. For example Depth or Water_Level
- This dataset will be added to the Plots/Queries window, and also to the display window as a graph. Double click the graph in the display window to update the graph display options (colors, labels, titles etc.).
- Alternatively, unique graphs an be created for each dataset can be created. Right Click the query dataset>> Add to Plot
