Cell size convergence is an important concept in flood modelling.
Rural Catchment Scenario Assessment
Rural Model Description

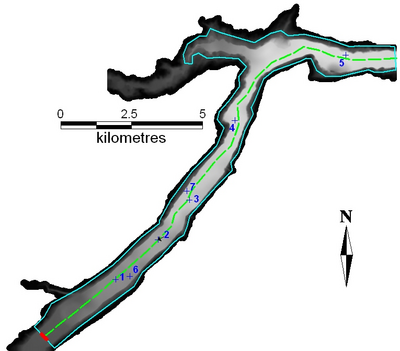

This test is designed to simulate flood wave propagation down a river valley following the failure of a dam. The valley DEM is ~0.8 km by ~17 km and the valley slopes downstream on a slope of ~0.01 in its upper region, easing to ~0.001 at lower elevations.
The inflow hydrograph shown below is applied as a boundary condition at the upstream end of the valley.
Rural Assessment Results
| Cell Size | Location 4 Result | Location 5 Result | Mesh Resolution Figure |
| 10m |  |
 |
|
| 20m |  |
 |
|
| 50m |  |
 |
|
| 100m |  |
 |
|
| 150m |  |
 |
|
| 200m |  |
 |
|
| 250m |  |
 |
|
