Revision as of 15:22, 30 October 2018

Steps

Run 'Extract ARR2016 for TUFLOW' tool in QGIS until error - This will let the tool download the data from BOM as well as perform the pre-calculations such as extract the catchment area and centroid from the input catchments
Open 'log.txt' located in the tool output folder and extract the longitudinal and latitude values
Using an internet browser, navigate to the ARR datahub
Input the coordinates of your catchment

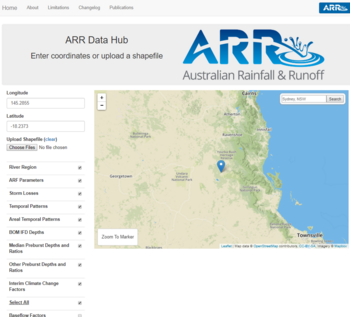

Tick on the 'Select All' box
Click Submit
Navigate to the bottom of the page and click Download TXT
Create a new .txt file called 'ARR_Web_Data_<catchment name>.txt' and save it in the data folder alongside the existing file 'BOM_raw_web_<catchment name>.html - The catchment name should be consistent with the name used in the QGIS tool. It will be the same as the BOM raw output and also be listed in the log.txt after name=
Copy the text from the 'Download TXT to the newly created 'ARR_web_data' text file

@@ Line 5: / Line 5: @@
 <li> Using an internet browser, navigate to the [http://data.arr-software.org/ ARR datahub]
 <li> Input the coordinates of your catchment
-<li> Tick on the 'Select All' box<br>[[File:ARR_datahub_input.PNG]]
+<li> Tick on the 'Select All' box<br>[[File:ARR_datahub_input.PNG | 350px]]
 <li> Click '''Submit'''
 <li> Navigate to the bottom of the page and click '''Download TXT'''<br>[[File:ARR_datahub_downloadtxt.PNG]]
