ArcTUFLOW Load Simulation Input Files

This tool loads all input shp files from a model simulation into a common ArcGIS Map window.
The ArcTUFLOW Run TUFLOW Simulation example does not provide an input (.tlf) to complete this example. This section relates to users who have run their own Tutorial, Demo, Example or personal models.

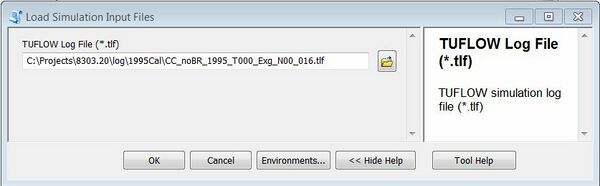

• After completing your model run, enter the simulation tlf reference

The shp files will be loaded using a predefined symbology for common TUFLOW input file types. This is determined based on the prefix of the file name. For example, the symbology for 2d_code and 2d_zsh files are shown below.



This tool is courtesy of Wood Rodgers, Inc. (www.woodrodgers.com)
