The TUFLOW Productivity Utilities (miTools) use the _TS GIS layer to plot the 1D time-series results. The program can also be used to summarise the peaks and time of peaks for all series within an active Graph Window:

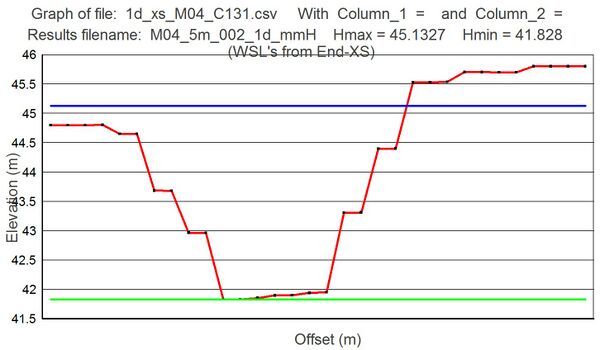

The peak water level results within a _1d_mmH layer may be plotted along with the cross-sectional data:
Long-section plots can be generated on a specified downstream reach of the 1d_nwk GIS layer. The tool will prompt the user for a DEM in which to extract a ground surface profile before plotting the long-section in Excel. This tool is particularly useful for viewing the results of a pipe network.
