Loading a Background Image

Background Images can be registered and added to a display.

The utility "Align Photo" is required to do this. This option is not available within the basic Ensight package. CEI Inc. should be contacted so that this utility can be added to your user define tools list.

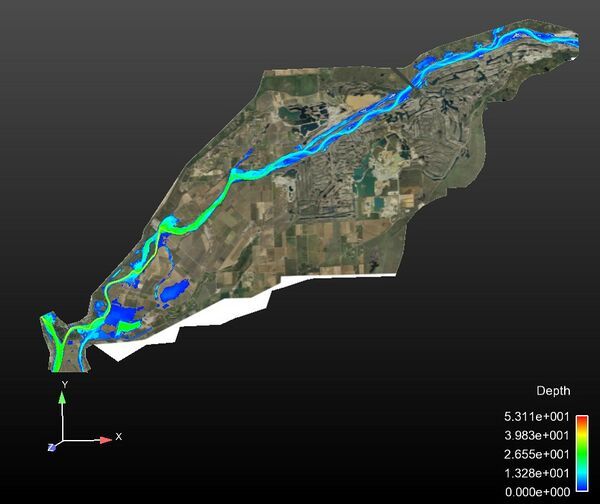

Steps to load aerial imagery are:

  • Select the Part which you would like to to apply the photo to.
  • Double Click the “Align Photo” button from the user define tools list.

Ensight 013.jpg

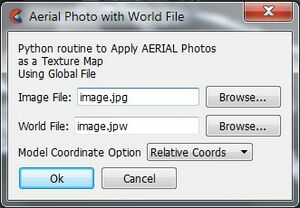

  • A dialog will appear, asking you to select the Image File, and the corresponding World Coordinates File. Select the “Relative Position” option (EnSight models are currently stored in relative coordinates).
  • Enter the Image File and World File.

Ensight 014.jpg

  • Select "OK".

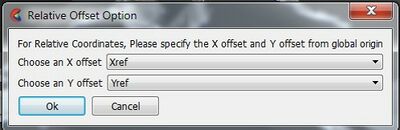

  • Select "Xref" and Yref" for the offsets.

Ensight 015.JPG

Ensight 012.jpg
