In FMA Challenge 1, a fully two-dimensional model with a nested one dimensional model has been developed to explore in and over-bank floodplain conditions. The model includes several hydraulic structures/bridges within the main stream system which impact flood elevations. Flooding of the urbanised over-bank floodplain is experinced. For interest, the requirements of the FMA challenge are provided here

The functional FMA Challenge 1 (1D-2D linked) has been developed allowing you to review the model setup, run and review results improving your skills in:

  • Nested 1D/2D models;
  • Understanding urban riverine conditions and over-bank floodplains;
  • Using the powerful functionality of scenarios and variables to determine a suitable cell size, timestep and log output scenarios;
  • Understanding the influence of structures on open channel hydraulics;
  • Using bc layers with HX, XP, CD and CN types; and
  • Understanding the impact of data quality on DEM development.

Data for this model is provided in a variety of different GIS compatible formats. Download the dataset that matches the GIS software you are using:

Relevant Tutorials

Although all Tutorials are of relevance for the FMA Challanges, For FMA Challange 1, it may be useful to revisit the following:

Model Setup

This section provides an overview and discussion of the model domain setup.
It is at your discretion which GIS package, text editor and method of model simulation to use (batch mode or within the text editor). All files required to setup and run the models are available within the download package. You have the choice of running with shape file or mif for usage in ArcGIS/QGIS or Mapinfo respectively.

Computational Domain Assembly

The layers used/created for Challenge 1 are:

  1. A DEM TIN created from the provided terrain data (2ft contours) and exported to ESRI ASCII format as a 2ft DEM grid. When TUFLOW reads this DEM it interpolates the elevations onto the 2D computation grid.
  2. GIS layers of cross-section locations and 1D network including structure details.
  3. GIS land-use layer digitised in .shp format.
  4. GIS layer of 1D/2D interface lines along the left and right banks of the channels.

All model inputs are independent of the 2D grid cell size, orientation and extent, allowing for different 2D resolutions, dimensions and orientation to be easily simulated.

Cross Section Spacing, Grid Size and Mesh Element Size

1D sections were used for the in-bank topography. The overbank (2D) areas were modelled using 10ft (~3m) and 15ft (~4.5m) resolutions. The 2D grid dimension (rotated) was 17,500ft by 8,000ft. A total of 87 cross-sections were used for the 1D in-bank domain.

Structures were modelled as a combination of bridges and culverts. For bridges, height varying energy loss tables were used based on the Hydraulics of Bridge Waterways (Bradley, 1978). For culverts, TUFLOW simulates all possible inlet and outlet controlled flow regimes with automatic switching between regimes. The calculations of culvert flow and losses are carried out using techniques from “Hydraulic Charts for the Selection of Highway Culverts” and “Capacity Charts for the Hydraulic Design of Highway Culverts”, together with additional information provided in the literature such as Henderson 1966.

The number of cross sections and mesh elements used are as follows:

2D Cell Size 1D Sections Active 2D Cells
15ft 50 286,434
10ft 87 643,565

Use of Scenarios to Modify 2D Grid Resolution

To test the effect of different resolutions, simulations were made using grid resolutions of 5, 10, 15, 20 and 40 ft (Noted that only the 10 and 15ft are presented in this example).

To run the model with varying cell sizes from a single TCF, scenarios were implemented with either '10ft' or '15ft' entered in the batch file using the -s switch. Importantly, if the -s switch is not used, the model will assume a default model scenario of 10ft as specified by the line Model Scenario == 10ft within the TCF.

Within this example, the 2D timestep and log output frequency are variables dependent on the 2D Cell Size scenario. The variables are specified through an external read file (.trd). The .trd file is called from the TCF: Read File == FMA_T1_CellSize_Commands_001.trd

When the model is initialised, the scenario determines the 2D_CELL_SIZE, 2D_Timestep and LogInt variables. The variables are set using the 'Set Variable' command in the trd. Each variable is then placed in the TCF and TGC using the << >> syntax. For example for the 10ft scenario:

  • Within the TCF, <<2D_Timestep>> is replaced with 1 and <<logInt>> is replaced with 30; and
  • Within the TGC, <<2D_CELL_SIZE>> is replaced with 10.

This example shows the powerful features of scenario modelling in TUFLOW.

Review of Varying DEM Results

A 15ft (~4.5m) 2D grid resolution is extensively used for urban modelling, and in this case provides a good trade-off between resolution and run time. 15ft cells are small enough that flow paths down roads are adequately represented (provided the DEM accurately represents topographic features such as roads, levees etc). Upon examination of the results, the flood extents varied by unexpected amounts between different resolutions. For example, the 10ft grid scenario (provided as part of the ftp download) produces a more extensive flood extent, even though the profile down the 1D channel is almost identical to the 15ft case. The extended flooding is the result of very shallow flow (less than 0.01ft deep) over large flat (horizontal) areas caused by the use of contours to create the DEM as discussed above. Due to the slightly coarser resolution the 15ft grid does not let water on to some of these flats, and they remain dry. Should an accurate DEM be made available for this Challenge, the flood extents are likely to be very different and much more consistent between different grid resolutions!

This does raise one issue indirectly of flood mapping in urban areas where the flood depths are very shallow, or if using direct rainfall modelling. In these instances, mapping of urban areas may specify that flooding must be of a minimum depth to be mapped. For example, where the flooding is less than say, 0.05m, it is not mapped.

Manning's 'n' Values

The adopted Manning’s 'n' values were based on aerial photography and structure photos and are tabulated below. A sensitivity simulation was carried out increasing the Manning’s 'n' value along the main channel from 0.03 to 0.04. The results for the sensitivity simulation are provided in the long-profile of maximum water surfaces along the channel (depth grids and other data can be provided upon request). The maximum increase in peak water level along the profile is 1.94 ft.

Land Use Manning's n
Main Channel 0.03
Roads 0.02
Properties (Buildings, Gardens and Fences) 0.1
Crop 0.05
Parkland 0.035
Vegetated area adjacent creek 0.06
Pasture 0.045


The typical challenges experienced in situations similar to this usually relate to:

  • The use of contour data to create the DEM; and
  • The model boundary/terrain data does not extend beyond the flooded area.

The presented solutions to these challenges are provided in the following sections.

Using Contour Data to Create the DEM

Contour data, without additional point elevations and/or 3D breaklines, is difficult to triangulate or interpolate to create an accurate DEM. The consequence of solely using contours is the resulting DEM can have a terraced or stair-step surface that contains flat sections where the contours form a U shape.

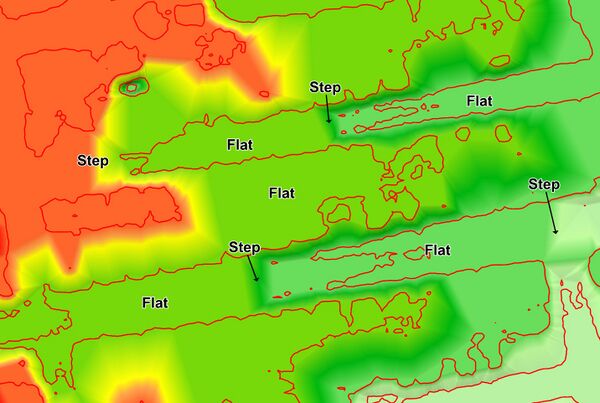

For example, the image below shows a part of the DEM. The red lines are the 2ft contours provided. Where the contours form a U shape, the triangulation or interpolation method typically forms flat (horizontal) areas inside the U as labeled “Flat” in the image. Between the Flats, Steps occur representing the drop in elevation to the next contour level.

Contour Data FMA Challenge 1.jpg

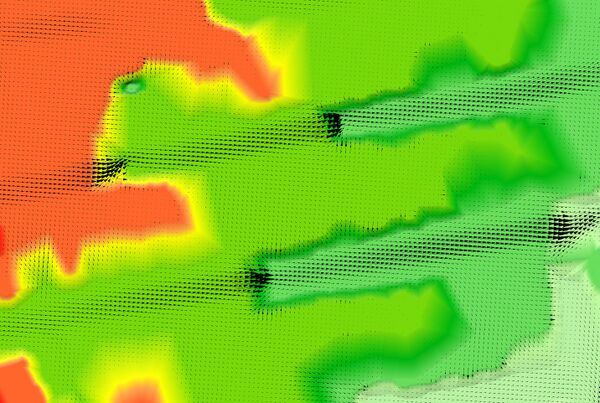

When the 2D flow patterns are observed, as per the velocity arrows in the image below, the water appears to be “cascading” down the roads. Along the flat areas the velocities are low, and where the elevations suddenly drop to the next flat section the velocities are high, thereby creating the cascading effect.


The 2D flow patterns reflect the terraced or stepped nature of the DEM, which is not a realistic representation of the road topography. Some interpolation methods such as IDW (Inverse Distance Weighting) can provide a smoother DEM, but may not preserve the contours, and where the U shapes are pronounced they will still have a strongly terraced effect.

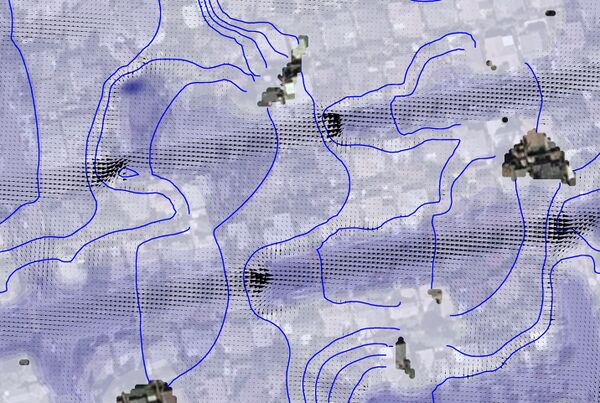

The resulting 2D depths and water levels are also unrealistic as can be seen in the image below. The blue shades are the depths and the blue lines the water level contours every 0.5ft. Where the steps occur in the DEM, the water level contours are closely spaced, and along the flats they are wide apart. The depths vary significantly along the road when they should be reasonably uniform.

Contour Data.jpg

For 2D modelling, especially in flat urban areas, contours should not be used to create the DEM. If the contours were generated from a DEM, then the original DEM should be used or the original terrain data should be provided and the DEM recreated from this data. If contours are used, additional point data and/or 3D breaklines along the low and high points need to be provided to prevent the terraced effect from occurring.


We have explored flood behaviour on an urbanised floodplain. Through the provided example model, we now we have a better understanding of:

  • Nested 1D/2D models;
  • The influence and implementation of hydraulic structures;
  • Use of scenarios and variables to determine cell sizes, timesteps and log outputs;
  • Using bc layers with HX, XP, CD and CN types; and
  • The limitations of contour data that should be considered when developing new hydraulic models.

Congratulations on finishing Challenge 1!
