Introduction

We will now create a TUFLOW GIS layer to reference the nodes within the Flood Modeller model. The purpose of this layer is to specify the spatial location of each of the linked Flood Modeller nodes.

Method

1. Open the FloodModeller_Nodes_P.shp layer from Module_Data\Module_01\gis folder.
2. Save as 1d_x1d_FMT_M01_nodes_001_P.shp within the FMT_tutorial\FMT_M01\TUFLOW\model\gis folder.
3. Open the GIS layer 1d_x1d_FMT_M01_nodes_001_P.shp within QGIS.

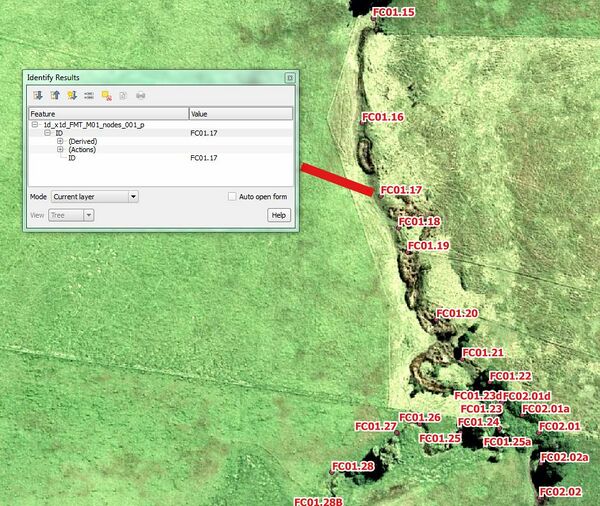

4. Interrogate one of the digitised points and inspect the attributes. This layer only has a single attribute correlating to the unique name of a RIVER, INTERPOLATE or REPLICATE unit within the Flood Modeller model. Note that the node IDs are case-sensitive as this is a requirement of Flood Modeller. At junctions, both the upstream and downstream nodes must be digitised within this layer.

5. Save the file.

   Key Tip!

   For real-world models, this GIS layer may be largely automated provided the original ISIS/Flood Modeller model is geo-referenced. Within Flood Modeller it is possible to output a text file containing each of the model nodes along with their Eastings and Northings. This text file can then be brought into any GIS package and used to create the points within the GIS layer to be used by TUFLOW.


   You have now created the GIS layer representing the Flood Modeller nodes for reading into TUFLOW. Return to the Flood Modeller Tutorial Model.
