This page lists useful batch file examples for using gdal_translate.exe. For complete documentation on this tool please visit gdal.org/programs/gdal_translate

Basic Format Conversion

Format conversion can be done using "-of <format_name>" then specifying the "<source_dataset> <destination_dataset>".

ASC to GeoTIFF

gdal_translate.exe -of GTiff DEM_M01_5m.asc DEM_M01_5m.tif

ASC to GPKG

gdal_translate.exe -of GPKG DEM_M01_5m.asc DEM_M01_5m.gpkg

GeoTIFF to ASC

  • -co: (Creation Option) - output format specific option. Flag must be used for each creation option used. - More Details
    • SIGNIFICANT_DIGITS=<n>: limits the precision of the output
gdal_translate.exe -of AAIGrid -co SIGNIFICANT_DIGITS=8 DEM_M01_5m.tif DEM_M01_5m.asc

Adding Compression To GeoTIFF


Using DEFLATE Compression on Output GeoTIFF

  • -co: (Creation Option) - output format specific option. Flag must be used for each creation option used - More Details
    • COMPRESS=<method>: "NONE", "DEFLATE", "LZW", and "PACKBITS" are currently supported by TUFLOW
gdal_translate.exe -of GTiff -co COMPRESS=DEFLATE DEM_M01_5m.asc DEM_M01_5m.tif

Specifying the Compression Level for the DEFLATE Compression Method

  • -co: (Creation Option) - output format specific option. Flag must be used for each creation option used - More Details
    • ZLEVEL=[1-9]
gdal_translate.exe -of GTiff -co COMPRESS=DEFLATE -co ZLEVEL=9 DEM_M01_5m.asc DEM_M01_5m.tif

Adding a Horizontal Predictor to the Compression

  • -co: (Creation Option) - output format specific option. Flag must be used for each creation option used - More Details
    • PREDICTOR=[1/2/3]: 1 (No Predictor) and 2 (Horizontal Predictor) currently supported by TUFLOW
gdal_translate.exe -of GTiff -co COMPRESS=DEFLATE -co ZLEVEL=9 -co PREDICTOR=2 DEM_M01_5m.asc DEM_M01_5m.tif

Assigning a Projection


ASC to GeoTIFF

  • -a_srs <srs_def>: Override the projection of the output file (no transformations performed). Srs_def can be an EPSG or WKT CRS definition.
gdal_translate.exe -of GTiff -a_srs "EPSG:32760" DEM_M01_5m.asc DEM_M01_5m.tif

Cloud Optimised GeoTIFFs


Cloud Optimised GeoTIFFs (COGs) are a format of GeoTIFF which are set up to allow easy storage and distribution via the Cloud. The GeoTIFFs are formatted slightly differently with internal tiling, overviews and compression which makes it easier to access and download parts of the data corresponding to the particular study area of interest, without the requirement to download the entire file first. COGs aren't currently supported by the 2023 version of TUFLOW. Currently they would need to be converted using gdal translate.

COG to GeoTIFF

gdal_translate.exe -of GTiff DEM_M01_5m_COG.tif DEM_M01_5m.tif

You can also do the conversion with the compression options described above.

Converting To/From GPKG


Convert to a new GPKG Database Where Layer Name is Different Than Database Name

  • -co: (Creation Option) - output format specific option. Flag must be used for each creation option used - More Details
    • RASTER_TABLE=<name>: The name of the output layer within database
gdal_translate.exe -of GPKG -co RASTER_TABLE=DEM_M01_5m DEM_M01_5m.asc DEM_database.gpkg

Convert to an existing GPKG Database Where Layer Name is Different Than Database Name

  • -co: (Creation Option) - output format specific option. Flag must be used for each creation option used - More Details
    • APPEND_SUBDATASET=[YES/NO]: If "YES" the existing GPKG will not be priorly destroyed.
gdal_translate.exe -of GPKG -co RASTER_TABLE=DEM_M01_5m -co APPEND_SUBDATASET=YES DEM_M01_5m.asc DEM_database.gpkg

GPKG to GeoTIFF Where the Layer Name is Different Than the Database Name

  • -oo: (Opening Option) - input format specific option. Flag must be used for each opening option used - More Details
    • TABLE=<name>: Name of the raster within the GPKG to be converted.
gdal_translate.exe -of GTiff -oo TABLE=DEM_M01_5m DEM_database.gpkg DEM_M01_5m.tif

Converting To FLT

FLT is not supported as a "write" format in GDAL (the driver name is "AIG" and is read-only - More Details). Fortunately GDAL does support writing to a similar format, "EHdr", however requires some additional steps to convert the ".hdr" into one that is supported by TUFLOW. The steps below outline this process:

Note: The ASC_to_ASC Utility supports conversion between ASC and FLT, therefore if converting from an ASC it's recommended to use this utility instead of the steps below. It's also possible to use gdal_translate.exe to convert to an ASC then use ASC_to_ASC.exe to convert the output to FLT. However if the raster is quite large, the interim step can be time consuming and the steps below outline how to go straight from one raster format straight to FLT using gdal_translate.exe.
  1. Convert to an "EHdr" raster. This example assumes the input file is a GeoTIFF.
    gdal_translate.exe -of EHdr DEM_M01_5m.tif DEM_M01_5m.flt
  2. The output ".flt" is identical to the "FLT" supported by TUFLOW so no updates to this file are required. The ".hdr" however is slightly different and requires manual updating.

    The output ".hdr" will look something like below:
    BYTEORDER      I
LAYOUT         BIL
NROWS          2137
NCOLS          1895
NBANDS         1
NBITS          32
BANDROWBYTES   7580
TOTALROWBYTES  7580
PIXELTYPE      FLOAT
ULXMAP         292786.5
ULYMAP         6178454.5
XDIM           0.5
YDIM           0.5
NODATA         -9999

    The format supported by TUFLOW needs to look something like:

    ncols <n>
nrows <n>
xllcorner <decimal no.>
yllcorner <decimal no.>
cellsize <decimal no.>
NODATA_value <decimal no.>
byteorder LSBFIRST

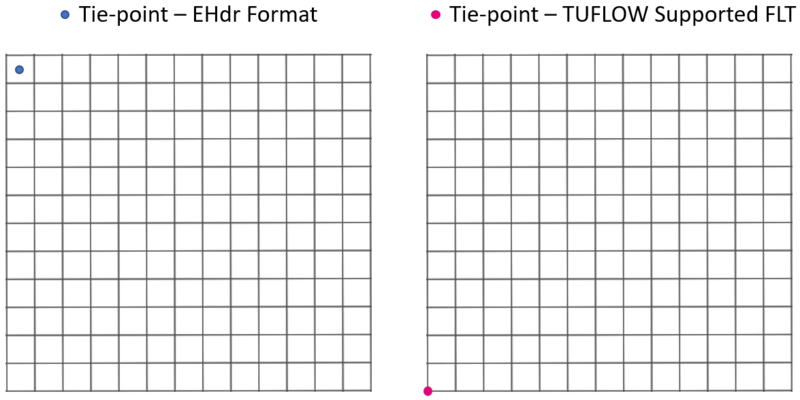

    The conversion is mostly a matter of renaming the header text (it should not be case sensitive in TUFLOW). There is one exception to this, the "tie-point" is different in the "EHdr" format. The "EHdr" format references the middle of the top-left cell, whereas the "FLT" format supported in TUFLOW expects the lower-left corner (similar to the ASC format).

    Ehdr flt tie point comparison.PNG

    Therefore the following conversions are required:

    xllcorner = ULXMAP - (XDIM / 2)
    yllcorner = ULYMAP - (NROW * YDIM) + (YDIM / 2)

    If using the ".hdr" created by gdal_translate.exe from above, the resulting converted "TUFLOW Supported .hdr" will look like:

    Note: Spaces are required between the text and value (do not use tabs)
    Note 2: "byteorder LSBFIRST" is only applicable if "BYTEORDER=I" in the exported ".hdr"
    Note 3: TUFLOW currenlty only supports square grid cells (XDIM = YDIM)
    Note 4: "FLT" only suppots single band rasters, "EHdr" supports multiple bands and so does "GeoTIFF", therefore be careful if converting to an "EHdr" from a "GeoTIFF" that contains multiple bands.
    ncols 1895
nrows 2137
xllcorner 292786.25
yllcorner 6177386.25
cellsize 0.5
NODATA_value -9999
byteorder LSBFIRST
