TUFLOW Viewer - Time Series Outputs - Plotting 1D Cross-Section Inputs

From Tuflow
Jump to navigation Jump to search

Tool Description

Cross-section inputs can be viewed in TUFLOW Viewer by:

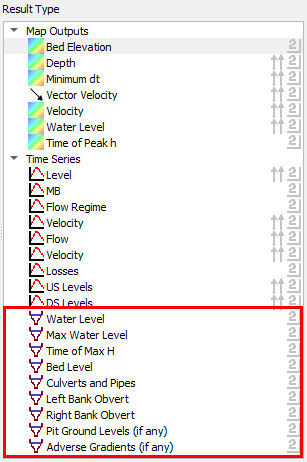

  1. Select a result type from the Time Series section - available cross-section types will have a cross-section icon CrossSection.png to the left
    TUFLOW Viewer TS Outputs XSec Result Types 01a.png
  2. Select a cross-section from the input layer
  3. If results are loaded - Results 2.png Water Level time series result type can be selected to display results on the cross section. The results are temporal and will change with time (maximum results may also be available)

This process is identical whether viewing ESTRY cross-section inputs or Flood Modeller cross-sections.

Since v3.4:
The option to show/hide inactive areas of an ESTRY cross-section is available via Settings >> Options >> Plotting >> Plot inactive areas in 1D cross-section.

Example

Plotting TimeSeries CrossSections.gif

Up
Go-up.png Back to TUFLOW Viewer Main Page
