- Copy the layer 2d_sa_M07_001 within the Module_data\Module_07\Inflow folder into the TUFLOW\model\mi folder.

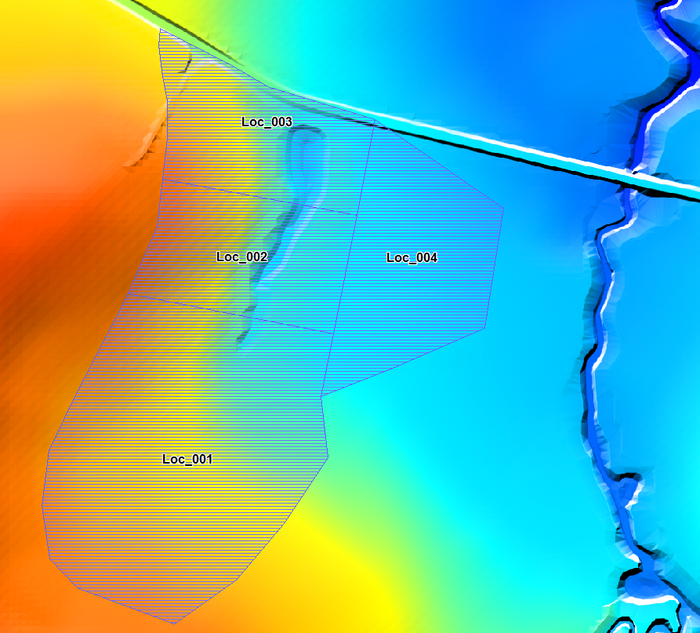

- Open the layer in the current Map Window in MapInfo. Four polygons have been digitised over the location of the proposed development. Each polygon represents a sub-catchment to which different inflow boundaries will be associated. Populate the first and only attribute of each polygon with the name of the inflow boundary as shown in the figure below. The next steps of this module will link these boundary names with an inflow using the bc_dbase created in Module 1.
- Save and export 2d_sa_M07_001 in MID/MIF format.
Boundary Condition Database - Copy the file 100yr2hr_loc.csv from Module_data\Module_07\Inflow and place it into the TUFLOW\model\bc_dbase folder. This file contains the four hydrographs that will be used.
- Open up the latest version of the boundary condition database which was used when simulating the model in Module 6. This is located within the TUFLOW\model\bc_dbase folder and is called bc_dbase_M04.csv.
- We need to add four additional rows to the file which reference the four additional inflows that have been created in the layer 2d_sa_M07_001. The revised bc_dbase should look like the figure below:
The hydrographs applied to each of the 2d_sa polygons are contained within the source file 100yr2hr_loc.csv.
- Save the bc_dbase as bc_dbase_M07.csv. It is now ready to be used within the model.
Conclusion
A GIS layer has been created containing four polygons in a 2d_sa layer over the location of the proposed development. The existing boundary conditions database (bc_dbase) has been modified to link these four GIS objects to hydrographs within an external csv file. Please return to the main page of module 7.
Introduction
This page details the method for using MapInfo to create the GIS based boundary layer. The layer will be populated with the name of each inflow boundary which will be linked to the boundary database (created in Module 1) in the following steps of this module. The created boundary will be applied as a source-area boundary in a 2d_sa layer.
