Introduction

This page contains instructions for configuring a network TUFLOW licence. It requires that you have the CodeMeter Runtime kit installed on the server, see Installing CodeMeter Runtime Kit.

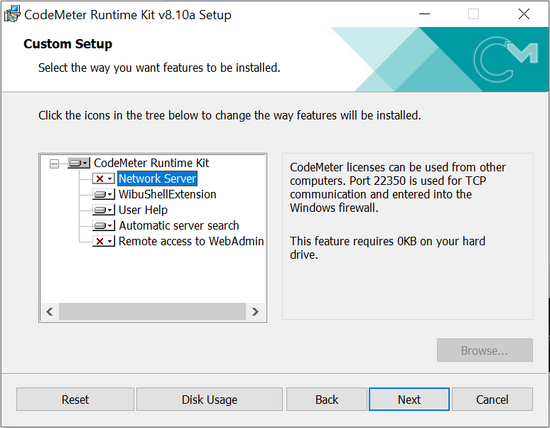

For the network license server, during the CodeMeter Runtime kit installation, please select the "Network Server" option. Doing so, CodeMeter will configure TCP and UDP protocols in the Windows Firewall for the server.
CodeMeter Network Server install 02.png

Method

  1. Open the CodeMeter Control Centre. This can be done via the icon on the taskbar:
    CodeMeter TaskBar.jpg

    Or via the start menu:
    CodeMeter ProgramFiles.jpg
  2. Open the WebAdmin via the button in the lower right.
    3. Codemeter v6.40d control center.JPG
    This can also be access by pointing an internet browser to: [http://localhost:22350/]
    The following CodeMeter webpage will appear.
    Codemeter v6.40d WebAdmin.JPG
  3. Navigate to the Configuration >> Server >> Server Access tab and enable the Network Server checkbox and hit Apply.
    4. Codemeter v6.40d Network Server.JPG
  4. The network licence should now be available. This can be tested on the server by double clicking the TUFLOW Executable (for example TUFLOW_iSP_w64.exe). A DOS window should open. Review the licence information listed. Check the licence types and numbers associated with your configuration (the licence types and numbers will be different to the example shown below).
    TUFLOW DOS Test1.JPG
  5. The next install steps will involve configuring client (modelling) computers to communicate with the server. The client computer will use the IP address of the server for the communication connection. To avoid the server IP address changing due to future actions (such as the server computer being restarted), we recommend configuring the server to use a static IP address.
  6. Configure client (modelling) computers to communicate with the server: Configure Network Client .

Troubleshooting

If your licences are not listed in the DOS window when you test whether the server configuration has been successful:

  1. Check whether you have the latest version of Codemeter User Runtime installed. If you do not, update to the latest version: https://www.wibu.com/support/user/downloads-user-software.html

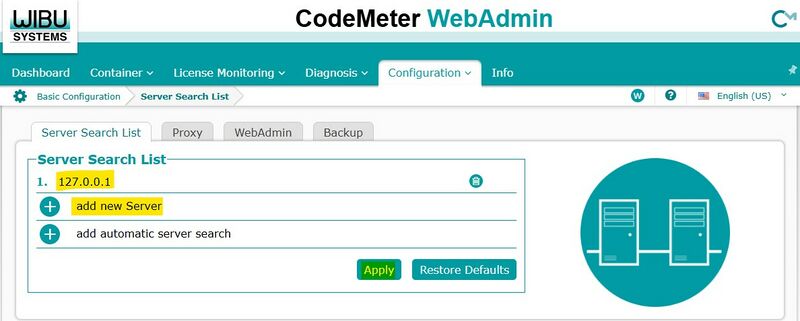

  2. If you are unable to change your version of Codemeter User Runtime, in CodeMeter WebAdmin navigate to the Configuration >> Basic >> Sever Search List tab and enter the server name, computer IP address, or the code: 127.0.0.1 in the Server Search list. After entering the details, click "Add" to save the change. This was a configuration requirement in some old versions of Codemeter User Runtime.
  3. If issues persist, email sales@tuflow.com
