Export 1D EPA SWMM Pipe Network Data from XPSWMM

We will now export 1D XPSWMM hydraulics features into an EPA SWMM 5 INP file format,and configure the dataset for TUFLOW:

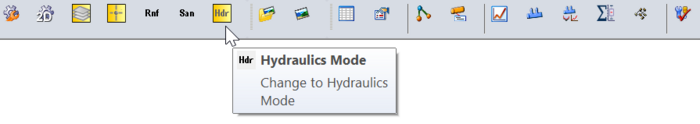

  1. In XPSWMM, select 'Hydraulics Mode' from the toolbar.

    XPSWMM to TUFLOW toolbar hydraulics mode 01a.png
  2. From the XPSWMM top dropmenu, select File > Import/Export Data > Export to EPASWMM5. The exported file will have a .inp extension and will be saved with the same name and in the same folder location as the XPSWMM .xp project file.
  3. When prompted to save changes, select 'Yes'.
  4. In Windows File Explorer, navigate to the folder containing the XPSWMM project folder and rename the exported INP file by adding 'HDR' to the file name. For example, 1D2D_Urban_001.inp becomes 1D2D_Urban_HDR_001.inp.
  5. Copy the renamed INP file into the TUFLOW\model\swmm folder. From this folder, drag and drop the .inp file into QGIS. This will open the 'GeoPackage - Create from SWMM inp ' tool from the QGIS Processing Toolbox.
    • SWMM Input File (inp): Pre-populated
    • CRS for GeoPackage: Select the appropriate Coordinate Reference System (CRS) for the model.
    • GeoPackage output filename: This field should be prefilled to save the output GeoPackage file using the same name and in the same folder location as the SWMM input file.
  6. Click 'Run'. After the tool is finished, click 'Close'.
  7. A dialog will appear. Select 'Add Layers' to open all vectors within the newly created SWMM GeoPackage file. By default, all items in the available list should have been selected.
  8. In the QGIS Layers panel, move the SWMM GeoPackage file to the top of the list. This will ensure the data within this database file is displayed above all other layers in the project.
  9. Inspect the layer objects and associated attributes in the GeoPackage database to familiarize yourself with the data.


The process above has created a Nodes--Junctions layer, containing all the model nodes. In the Convert XPSWMM Model to Recommended TUFLOW Structure section, an improperly formatted layer of the same nodes was generated from XPSWMM. To prevent future errors, this layer should be removed from the QGIS workspace and deleted from its GeoPackage.

  1. In the QGIS Layers panel, open the tbc group (i.e. 1D2D_Urban_001.tbc). Right click the 2d_bc points layer and select 'Remove Layer...'.
  2. From the top dropdown menu options, select View > Panels. Tick on 'Browser Panel'.
  3. In the QGIS Browser panel, navigate to the TUFLOW\model\gis folder and open the GeoPackage layer tree.
    Note: Within the QGIS Browser panel, there is a dropdown directory, 'Project Home'. This directory is a shortcut to the location where the QGIS workspace is saved.
  4. Right click 2d_bc points layer (i.e.1D2D_Urban_001_2d_bc_P) and select Manage > Delete Layer.
