TUFLOW Message
WARNING 2934 - At least one merge polygon vertex is outside quadtree sub-domain. Current nesting level = n
Alternate Message
CHECK 2934 - At least one merge polygon vertex is located inside quadtree cell(s) from different nesting level. Processing nesting level = n
Description

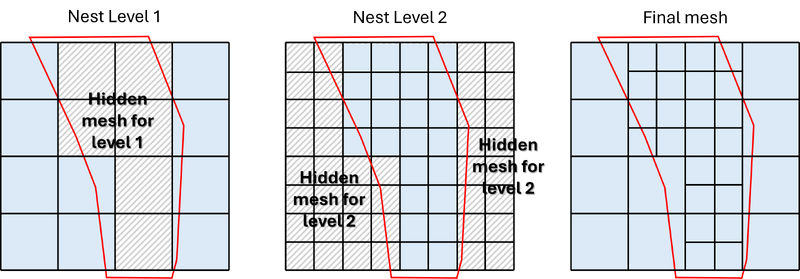

Issues can occur in the TIN process when 2d_zsh polygons intersect with multiple quadtree levels.
Suggestions
Check by reviewing the _zsh_zpt and DEM_Z check files that the appropriate topography modifications have been applied. If they haven't, either extend the 2d_qnl to cover the entire 2d_zsh or create a TIN using QGIS or SMS and read the TIN into TUFLOW directly (using the 'Read TIN Zpts ==' command).
