Line 15:
<br>

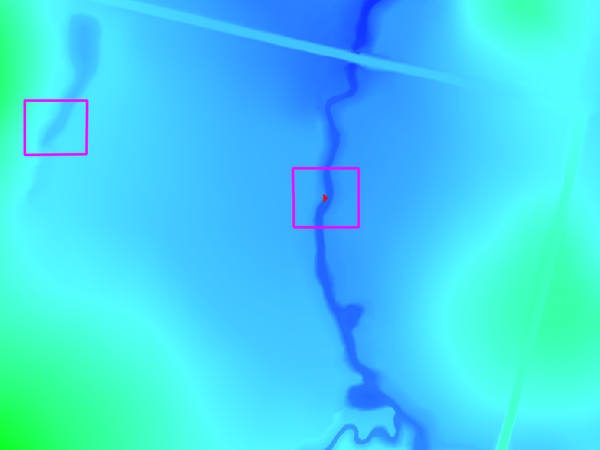

[[File:M14 pump QGIS.png|600px]]
<li>The pump requires only two attributes to be entered. Right-click on the '''2d_bc_M14_pump_001_P''' layer and select 'Open Attribute Table'. The attribute table shows all attributes currently associated with the pump object. Double-click on the ''Type'' attribute and change the type to '''SH'''. Using the same method change the object ''Name'' to '''pump'''. For a description of each of these attributes, refer to
The ''Type'' attribute tells TUFLOW what type of 2d boundary is being created, while the ''Name'' provides a link to the relevant boundary condition data to be read from the boundary condition database.</li>

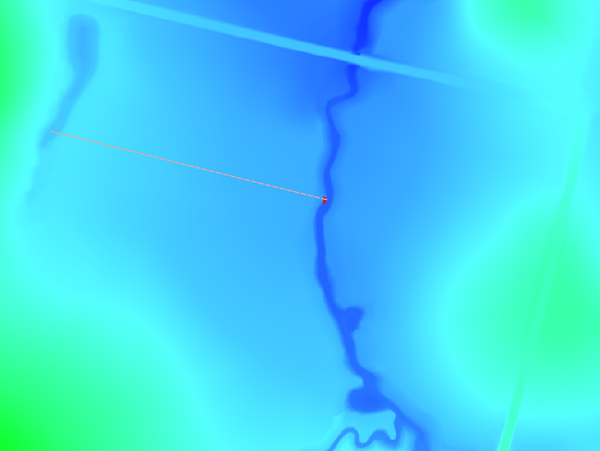

<li> We now need to specify where we want the flow removed from the creek to be transferred to. To do this a connection feature is required.
| |||
